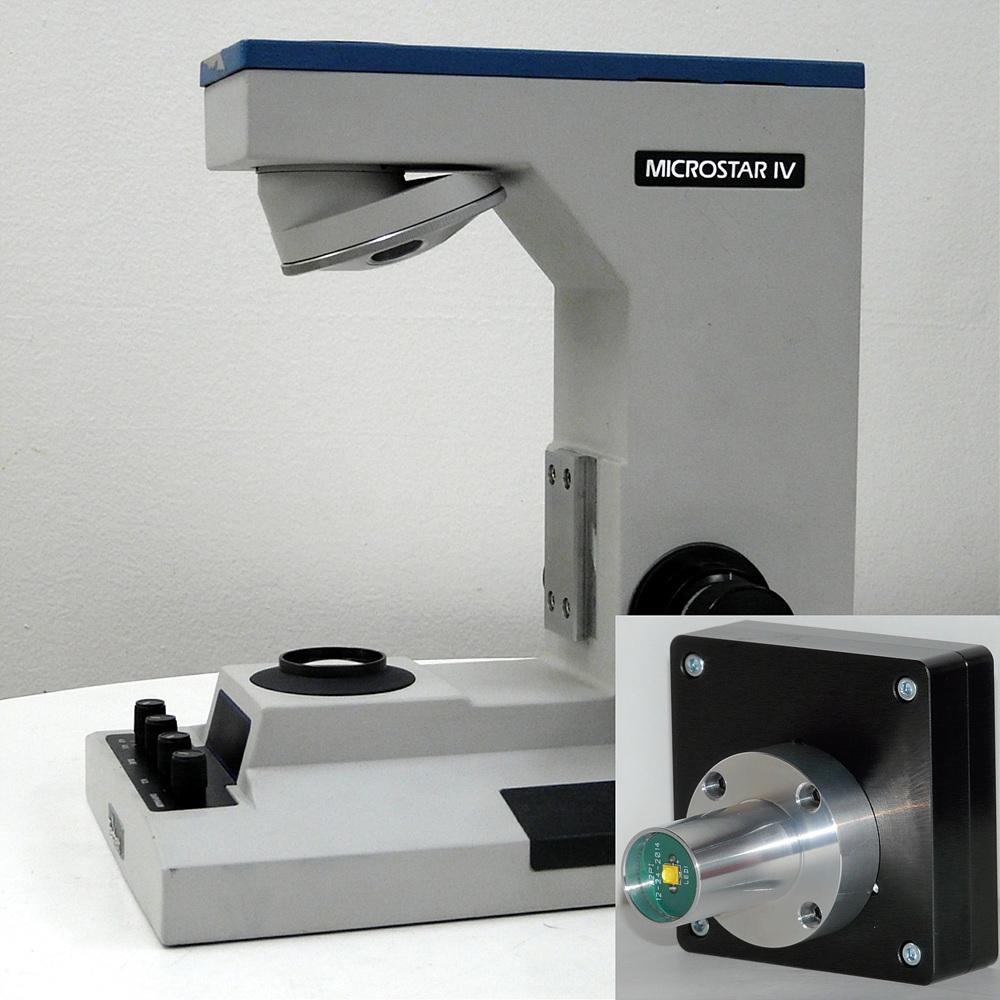

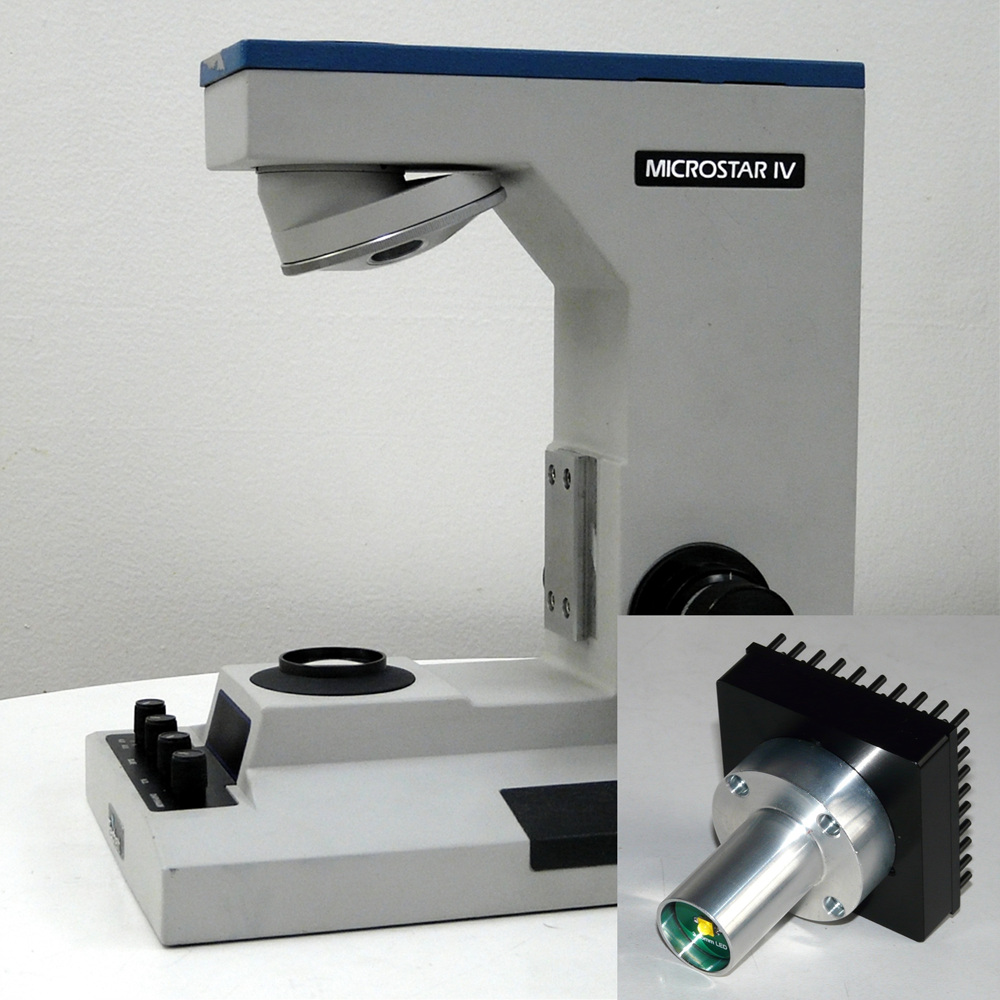

Leica Microstar IV Illuminator

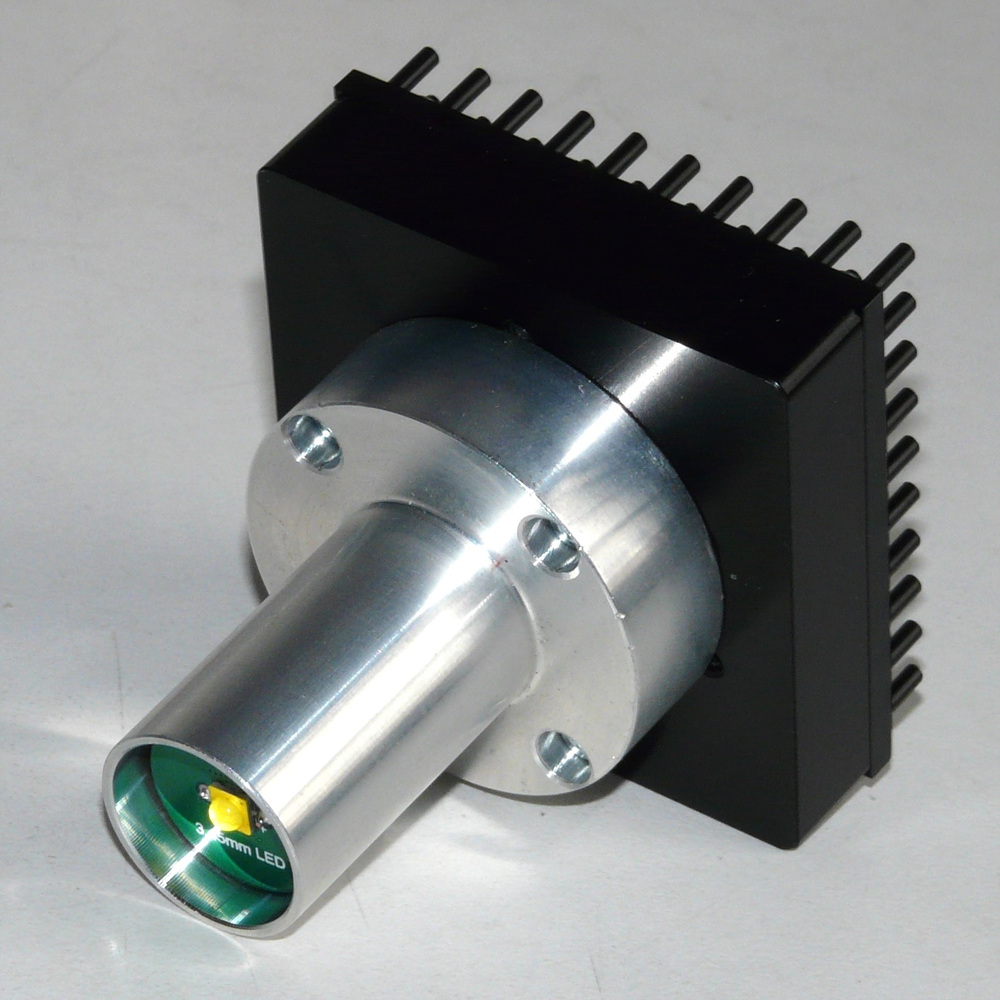

This LED illuminator replaces the original Leica Microstar IV illuminator. Provides a whiter, brighter light than the original, while consuming 90% less energy and generating 90% less heat. Intensity control is continuous from 0-100%. Problems with heat damaged bulb sockets, connector and power supply failure are all eliminated and you will never have to change bulbs again. Don’t replace your high quality older microscope because of a bad illuminator. Replace your old Leica Microstar IV illuminator with a new Nanodyne LED system. You can keep your perfectly good microscope working for a fraction of the price of an inferior new one. All Nanodyne illuminator systems include the power supply and required cables. Everything required for the illuminator is included. Your new Nanodyne illuminator will add decades of useful life to your microscope.

• Custom-designed to fit the form factor of the Leica Microstar IV.
• Remote adjustment on an existing control on the microscope is standard. Brightness control potentiometer on the new illuminator available on request.
• Easy installation with instructions and most tools provided.
• All illuminator systems are backed by our 3-year warranty.

Specifications:

• Illuminator Dimensions: 2.45 x 2.45 x 2.87 inch
• Power Requirements: 5 to 24V/3.5W
• Brightness: 410 lm (320 lm prior to 3/22/2017)
• LED Expected Lifetime: 80% of Original Brightness at 88,500 Hours
• Material: Anodized 6061 T6 Aluminum

Included Items – Click for Drawing

Installation Instructions – Click for Document

*NOTE: Set screws are pre-installed. Please inspect aluminum adapter before contact us.
